Analyzing HT antennas is hard

Even with reasonable equipment, analyzing an HT antenna is hard because you are part of the system.

Analyzing HT antennas is hard

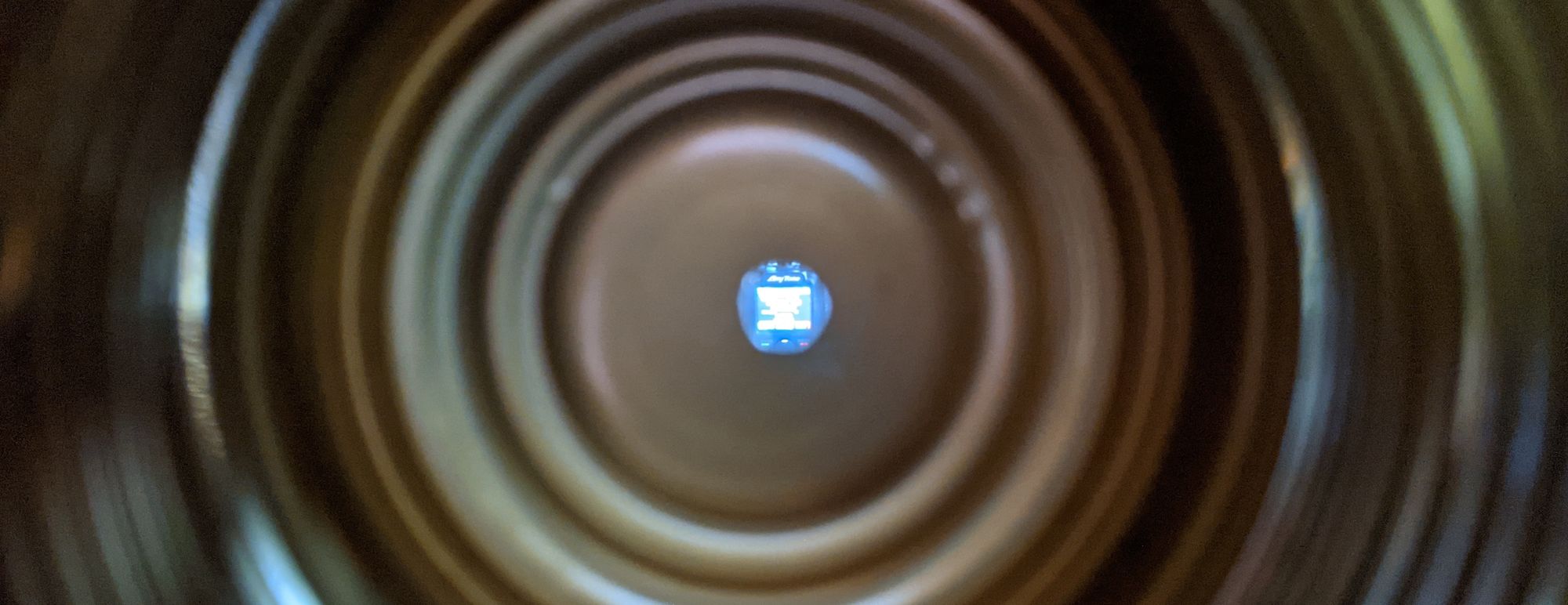

A peep through my test jig

Reproducing an antenna system to get the most accurate analysis of the antenna can be somewhat difficult to do and to be sure that you're really reproducing a similar system to the HT itself.  If you haven't already, read my post about the NanoVNA to get a broader scope of info on what I do to analyze antennas.

There's no point optimizing an HT antenna setup on a perfect ground plane free of obstructions etc to see what the antenna can do ideally as it's rarely in an ideal situation in normal use.  You want to set up something that's as close to an actual HT as possible.  I've tried a variety of things from just holding the coax and keeping it at a normal distance from my head/body, I tried a metal box, and I've settled on a pretty typical 3" wide tin can as that has a pretty similar profile to an HT in size.  I've also heard of folks gutting a dead radio and installing coax into it which is something I'm going to try next time I have a head HT on my hands.

Currently what I do is put a 1M pigtail on the NanoVNA and screw it into the can and while holding the can I do the calibration using the calibration kit that came with the NanoVNA so that the antenna system is calibrated.  I then attach my antennas one at a time and hold the can near my face and in free air and compare the readings.  I decided to try holding the can about a foot away from my face as I would normally hold an HT for my readings and re-analyzed all of my antennas.

When I re-analyzed my antennas I got slightly different results than my previous metal box jig which is good, although some were decidedly worse, including some that I've seen measurements from other folks saying they were very low SWR in their testing so I still don't think I've gotten a good setup yet and I'm going to keep tinkering with it.  I'm not looking for "better" numbers, I want accurate ones and am just not sure how to get those consistently.

And an update; got a new HT antenna so I hooked up everything the way I had previously set it up, got all calibrated, all looked good.  Figured I should validate my setup by analyzing a few quality antennas I trust and comparing the sweeps against the last time I analyzed all my antennas and they were all very different.  Not just a little off, but very different looking smith charts.  Messed around quite a bit, no matter what, not the same.  Great.  So I still have no consistent method for measuring HT antennas.  I have no idea what's different than the last time I set things up.  I think my next steps is buying a busted HT, mounting a cable in it permanently and using that as my jig.
